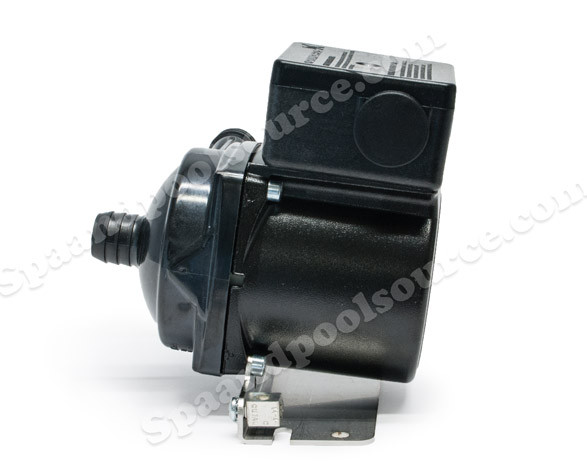

Grundfos Circulation Pump for Sundance and Jacuzzi Spas
This is a drop-in replacement with 3/4" barbed fittings to fit your Sundance or Jacuzzi spa. The pump placement may have to be moved and installed elsewhere in the cabinet due to a difference in the design of the Grundfos over the Laing.

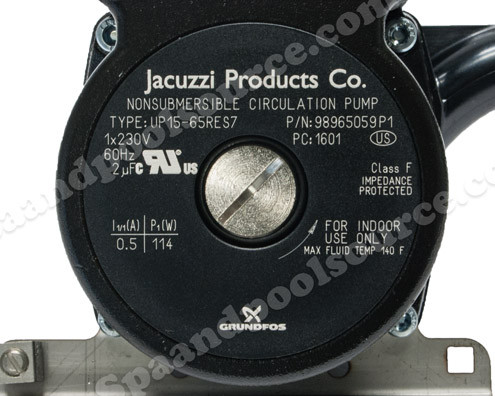

- Grundfos Pump made for Sundance/Jacuzzi. Grundfos part number: 98653522 P1
- 230 Volt (220-240 Volt)
- 3/4" barbed fittings. (Nominal size. Actual: 0.5" ID / 0.8" OD)
- *Comes with Metal Base and a Metal Housing.* This pump must use a bonding wire to the system as an external ground.
- replaces the following pumps: 6000-125, 6000-125RK, 6500-035, SM-909-NHW-18 3/4, SM-909-NH-18 and more (see below)
- Download the Installation Instructions (PDF)
This Pump is compatable with the following Sundance® Spas:
- Mid 2009-2012 680 Burlington, Hartford, and Hawthorne equipped with a Circ Pump
- Mid 2009-03/2013 780 Hamilton, Chelsee.
- MId 2009-04/2013 Certa, Camden
- 2008-2012 680 Burlington equipped with a circ pump
2007 680 Hartford and Hawthorne equipped with a circ pump
2007-Mid 2009 780 Hamilton, Chelsee, Certa and Camden
2006 Palermo, Bahia and Cayman
- All 2005 780 Series spas: Palermo, Bahia, Cayman
- All 2003-2004 Sweetwater models (Except Lagunas): Palermo, Bahia, Cayman
- 2001-2003 Caprio ST (Caprio model used a 120 Volt pump, you would to verify which model you have)
- All 1997-2004 800, 850 Series PermaClear System: Altamar, Cameo, Capri, Optima, Majesta, Marin, Maxxus.
- DOES NOT work on 2005+ 880 Series: Altamar, Cameo, Capri, Optima, Majesta, Marin, Maxxus. Use either 6500-907 or 6000-907 see product for detail.
Replaces part number 6500-035 , SM-909-NHW-18 3/4
This Pump is used on the following Jacuzzi® Spas:
All 2002+ J-340 & J-345 Models
All 2002+ J-330 & J-335 Models
All 2002+ J-350 & J-355 Models
All 2002+ J-360 & J-365 Models
All 2002+ J-370 & J-375 Models
All 2002+ J-380 & J-385 Models
2002-2003 J-320 & J-325 Models
Mid year 2007-2012 J-270 & J-280 Models if equipped with a circulation pump
2008-2012 J-230 Models if equipped with a circulation pump
Does NOT work on units that are 120/240v convertible regardless of how the hot tub is wired.
Replaces the following circ pump models:
- SM-909-NH-14 3/4" Barb 230 Volt
- SM-909-NHW-14 3/4" Barb 230 Volt
- SM-909-NH-18 3/4" Barb 230 Volt
- SM-909-NHW-18 3/4" Barb 230 Volt
- SM-909-NH-26 3/4" Barb 230 Volt
- SM-909-NHW-26 3/4" Barb 230 Volt
- SM-959-NHW-26 3/4" Barb 230 Volt
- SM-1212-NH-26 3/4" Barb 230 Volt
- E10-NSHNSW-20
- Sundance number: 6000-125
- Sundance number: 6000-125RK
- Sundance number: 6500-035

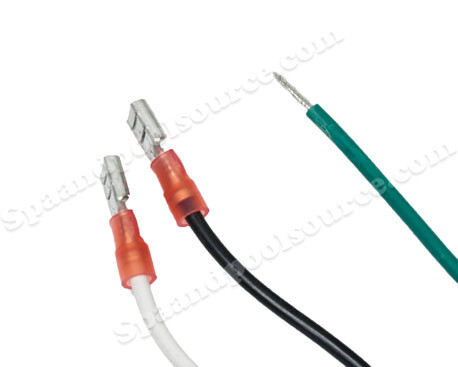

PLEASE NOTE: This pump is a 230/240 Volt Pump with white, black and green wires. The white and black are the two hot leads and the green is the Ground. Do not confuse this pump for a 120 Volt version!
This Pump can be returned for warranty only! Please Read our Return Policy
