Sundance Spas
23"x10"x15" Squareback 3-wire with built in thermal cut-out.
Description:
Low Flo Square Back Heater Assembly
5.5 KW / 240 Volts, Comes with the High Limit disk
Titanium Heater Element
Built in Thermal Cut Out
3 Wire with Fork Connectors
5.5 kW Stainless Steel tube, Titanium Heater Element. Built in Thermal Cut Out. Comes with the High Limit disk 6000-093
Low-flow, square-back style heater assembly. Features Titanium extended life element.
5.5kW @ 240V • 1.375kW @120Volt meets or exceeds original spa heater assembly specifications as made by Laing Thermotech (Laing no longer makes heaters) or Therm Products
Note: In November 2010, the heater barb adapter 6560-034 was removed from all 680/780 models with a circulation pump. In its place a plug was installed 6000-124.
Sundance® Spas Models:
2011+ Select Constance® and Victoria
04/2013-03/2017 780 Montclair
2007-03/2017 780 Hamilton, Chelsee®, Certa
2007-03/2013 780 Camden
2007-2012 680 Hartford, Hawthorne equipped with a Circ Pump (6000-125E)
2008-2012 680 Burlington equipped with a Circ Pump (6000-125E)
2003-2006 Palermo, Bahia, Cayman

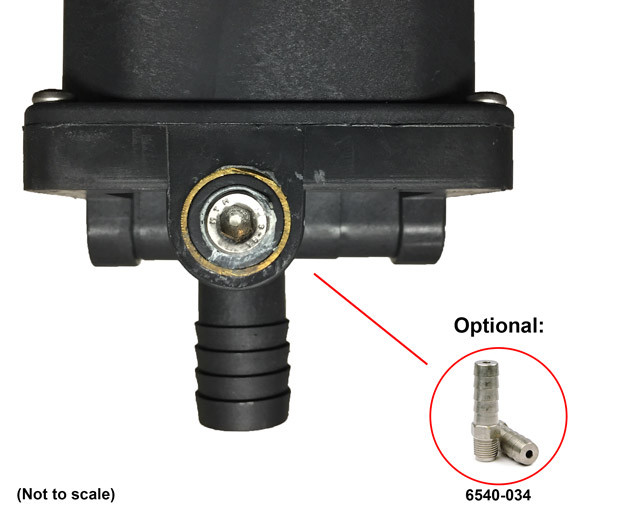

6000-124, Plug: 1/8-27 NPT SS; used when removing the heater barb adapter 6540-034 to plug the line. In November 2010, the heater barb adapter (6540-034) was removed from all the 780/680 models with a circulation pump. In its place a plug was installed, part number 6000-124. If you need the Barb Fitting 6540-034 (your old one was plastic the new one is stainless) order from below in Related Products.
Jacuzzi® Spas Models:
All 2011+ J-LX®/J-LXL® Models
Replaces 6500-403 (same as the 6500-402 except would need to change terminal connections)
2002-2006 J-350, J-330 Models
2004+ J-335, J-345, J-355 Models
2005-2007 J-325 Models
2007+ J-375, J-365 Models
2007+ J-270, J-280 with Circulation Pumps
J-300 LED series (2008+ J-375, 2007+ J-365 & J-355) J-320, J-325 (except 2004 & 2008+). J-330, J-335, J-340, J-345, J-270, J-280. J-230
Please Note: 6000-124, Plug: 1/8-27 NPT SS; used when removing the heater barb adapter 6540- 034 to plug the line. In November 2010, the heater barb adapter (6540-034) was removed from all the 780/680 models with a circulation pump. In its place a plug was installed, part number 6000-124. If you need the Barb Fitting 6540-034 (your old one was plastic the new one is stainless) order from below in Related Products.
Troubleshooting your Heater:
Spa Heaters are the last thing that comes on and is reliant upon all sensors and pressure/flow switches, fuses, pumps and relays working. Heater elements either work or don't work, there is no inbetween, so if you are getting some heat then the issue is probably elsewhere.
Voltage testing to heater: When testing the heater make sure that you have the proper voltage (240 Volts for most heaters) by measuring across the L1 and L2 wires from the Circuit Board to the Heater at the Heater terminals, at the same time, measuring from L1 or L2 to ground does not give a proper reading. Very Important: DO NOT measure by placing your probe on L1 or L2 and the other probe on Ground, you will get a 120 Volt reading which is not correct.
Continuity Test or Ohms test: Turn off the power to the spa and with your probe set to a continuity check, probe the 2 heater terminals at the same time. One probe on one terminal, and the other on the other terminal. Using an Ohm meter, on its lowest setting, measure the resistance between the 2 heater terminals. The typical range is 9-12 Ohms. Note that depending on the heater KW a <25 ohms is acceptable. Another test: With your Ohm meter set to the highest setting, probe one of the heater element terminals and the other probe to the housing (Metal) or Ground. You should get an infinite reading indicating no continuity to ground.
