E10-NSHNDNN2W-01, Laing Pump (Goulds Water Technology), 115/120 Volt 3/4 inch barbed connection.

Specifications:

• 120Volt 50/60Hz
• Max. 60W IP55
• 29PSI (2bar)
• 140 degree F (60 degree C)

see below for more complete list of spas

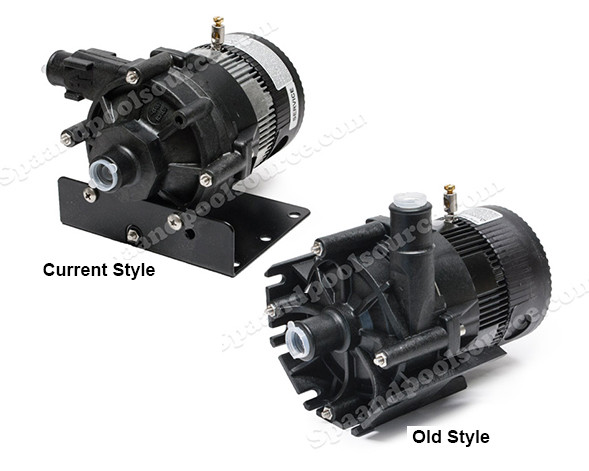

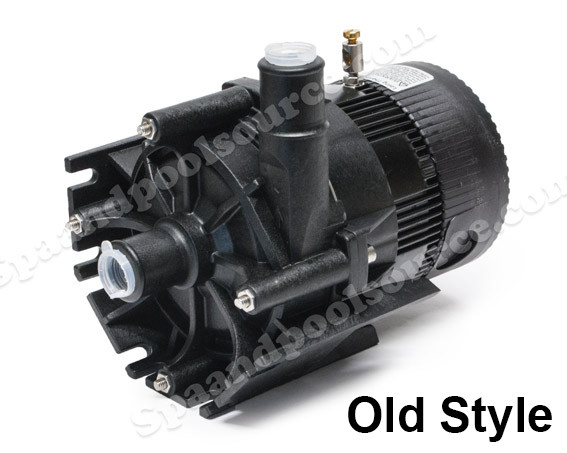

• E10-NSHN1W-19 replaced SM-909-NHW-14 Laing Pumps 3/4 inch barbed fittings.

• 3/4" barbed fittings. Outside diameter of barb fittings: The OD of the barb fitting is 7/8 inch which is slightly larger than the 3/4 inch barb  to allow the 3/4 inch ID plastic tubing to fit snugly. The ID of the barb fitting is 5/8 inch which does not matter to installation. All Sundance Spas and Jacuzzi Spas that use this type of Circ Pump uses this pump .

• 115/120 Volt. This pump is a 115/120 Volt Pump, the wires that come with the pump is white, black and green, the white and black are the 2 hot leads with the green as a Ground. The pump comes with no connectors.
• Comes with power cord (does NOT have a plug on the end)
• Has a metal removable base that can be turned to different positions with just 2 screws. Simply mount the pump in the direction needed.
• The Laing E10 EcoCircPump is used on many spa/hot tubs and can be used to replace most brands of circulation pumps with 3/4 inch barbed fittings.This pump uses 40% less energy and runs 40% cooler than previous models. It also includes a smart "chip" in the motor that gradually increases rpm at power up that minimizes impeller cavitation and ensures "air lock" free startups. This cycle will repeat up to 10 times until "prime" is established. If prime is not established, the pump will shut down and require manual restart (turn power to spa off and back on).

• The pump will not operate without water on the head of the pump, do not try and bench test this pump without it being in the spa so the pump is water primed.

• The pumps are water tested at the Factory so when you receive it it may have a little water left in the wet end of the pump.

This Pump is used on the following Sundance® Spas:

• • 2008-Mid 2009+ 780 Dover
  • 2007 Metro and Solo Models
  • 2006 Caprio, Metro and Solo Models
  • All 2005 850E Series Spas
  • All 2003-2005 Lagunas Models
  • All 1999-2004 Portofino Series Spa Models. Tango, Metro, Caprio

Warranty: Warranty on this pump comes from Laing Products, contact the manufacture.
