Sundance Spas

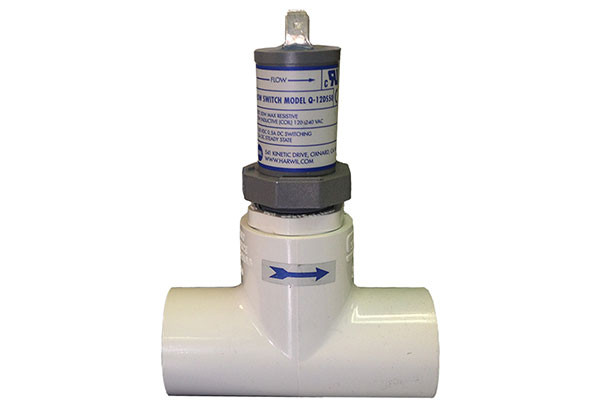

Sundance Spas Flow Switch PVC
Loading...
Loading...
Loading...
Additional information
Loading...
Sundance Spas
Details:
Replaces the Harwil Q-12DS, Q-12DS50 with 1/2" threads
Rated at: 50 Watt Max. Resistive, 10 Watt Inductive (Coil) 120-240 VAC. 5-28 VDC 0.5A DC Switching. 2.5 DC Steady State
Does not come with cables
3/4" slip x slip T with 1/2" threaded reducer for 1/2" threaded flow switch
Has standard spade terminals (2 spade terminals)
Can be removed out of the T fitting and installed in existing T fitting on your spa with ½" threads
For 3/4" thread see the 6560-860 Flow Switch
Used On the Following Sundance® Spas Models:
All Sundance® Spas 800/850 Models using the 6500-301 Bypass Heater, up to 5/1999
780 Dover, 2008-03/2017
Metro and Solo, 2007
Caprio, Metro and Solo, 2006
780 Lagunas Models, 2005
850E Series: Caprio, Metro, Solo
All Portofino Models, 2000-2004: Metro, Solo
Used On the Following Jacuzzi® Spas Models:
J-315, 2004+
J-325, 2004 and 2008+
J-310, 2002-2003
Installation:
Click here for video instructions on replacing your flow switch
The connectors on the Flow Switch are attached to a PC Board connector that is located on the PC Board (usually at the top). There are other wires connected to this plug:
Jumper interlock wire, Flow Switch, High Limit sensor, and Temp sensor
Remove the pin connector from the board.
To remove a sensor or switch wire from the sensor harness connector, insert a paper clip into the slot corresponding with the wire to be removed. This will depress the pin tine, allowing the wire to be pulled from the harness connector.
Important! When reinstalling the sensor or switch wire back into the sensor harness connector, make sure the pin tine is lifted (approx. 1/32") prior to inserting the wire. This will ensure the sensor wire locks into the harness connector. Do not over bend the pin tine or it may break off.
Troubleshooting:
A defective flow switch will cause a "Flashing Flo" or "Solid Flo" on the Control Panel Icon.
"Solid Flo" is the Flow Switch
"Flashing Flo" could be:
Flow Switch, Circulation Pump (clogged or defective), or Dirty Filter
More Information:
We're on Facebook! Follow us for instructional videos and more!
*FREE Standard Ground Shipping on this item with a $4.95 handling fee on all orders (Contiguous U.S. Only). Please see our Shipping Policy!
For All Sundance® Spas Flow and Pressure Switches, Click Here!
