Sundance® Spas, Sweetwater, and Jacuzzi® Spas Flow Switch

Part Numbers: Q12DS-C2

Details:

• Flow Switch with Transparent Tee 3/4 inch barb with s 3/8 inch barb off the side. We offer only as complete unit with plastic housing (clear plastic housing is not sold separately)

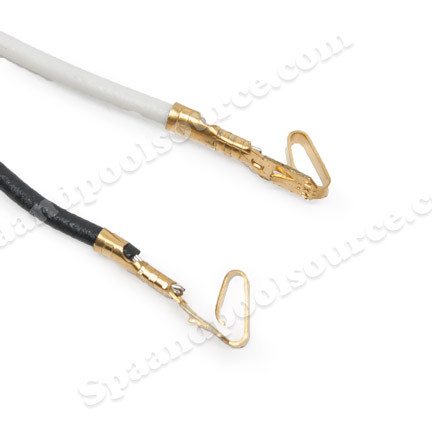

• Cable has Curled Finger Connectors. Do not use on other models such as 800,850, 800 Series that use a square finger connection!

• Part number on Flow Switch:Q12DS-C2
• Flow Switch now comes molded with a 3/32 inch hole opening. Prior to February 2008 a 3/32" hole had to be drilled for it to be installed on all 2002-2008 2 and 3 pump models.

Used On the Following Sundance® Spas Models:

• 10/2016+ 980 Series: Kingston, Claremont
• 2016+ 880 Series: Maxxus®, Aspen®, Optima®, Cameo®, Altamar®, Marin®, Capri®
• 2013-03/2017 780 Montclair
• 2011+ Select Series: Constance®, Victoria
• 2008-03/2017 780 Series: Camden, Certa, Chelsee®, Hamilton, Hamilton (w/circ pump) Hartford, (w/circ pump), Burlington (w/circ pump)
• 2007-2012 680 Hartford, Hawthorne Models equipped with a Circ Pump
• 2007 Hamilton, Chelsee®, Certa, and Camden
• 2005-2006, 780 Palermo, Bahia, and Cayman
• 2003-2004 Sweetwater Models: Palermo Bahia, Cayman

Used On the Following Jacuzzi® Spas Models:

• 2002-2003 J-320, J-330, and J-340 Models
• 2004+ J-335,J-345
• 2007+ J-355,J-365, J-375 Models
• 2007+ J-230, J-270, and J-280 Models with the Circulation Pump Option
• J-300 LED Series (With Curled Finger Connectors)
• 2007+ J-280, J-270, J-230 With optional Circulation Pump
• 2002-2003 J-320, J-330, J-340
• 2007+ J-355, J-356, J-375
• 2011+ JLX, JLXL models
