Gecko Aqua-Flo XP2, XP2E Wet End, 2.5HP, 48 Frame, 3" OD Fittings

$197.00

Gecko Aqua-Flo XP2, XP2E Wet End, 2.5HP, 48 Frame, 3" OD Fittings

Related products

Shop all

Gecko Aqua-Flo XP, XP2E Wet End: 91041830-000, 3HP, 48 Frame

Gecko Aqua-Flo XP, XP2E Wet End, 3HP, 48 Frame$198.00

Gecko Aqua-Flo XP2E Wet End 2.5 HP, 3.5thp 56-Frame 6.3 Inch Diameter$196.00

Gecko Aqua-Flo Impeller Wear Ring: XP2E, XP3$26.00

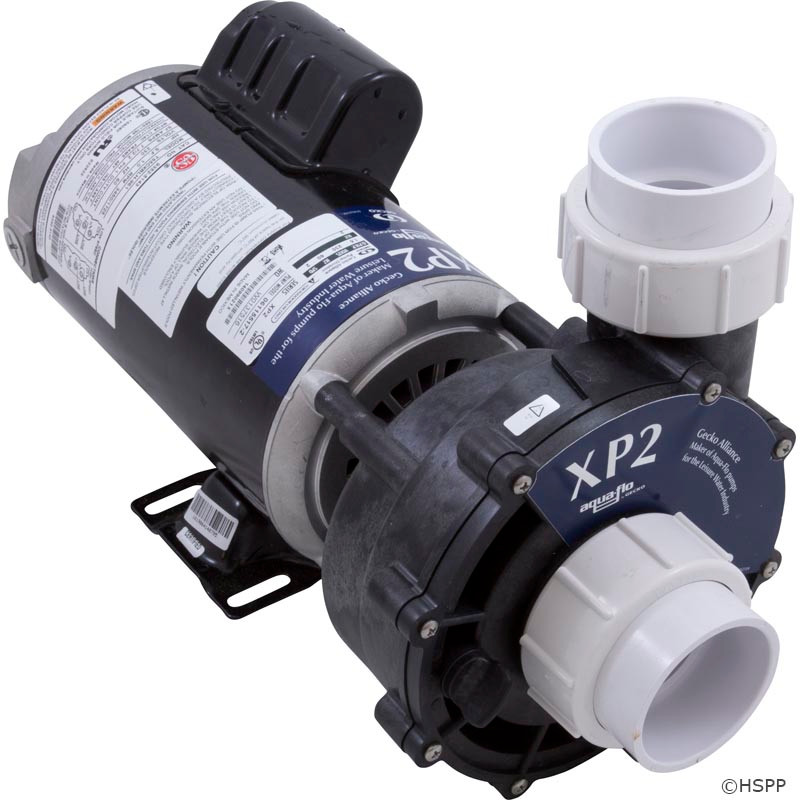

Gecko Aqua-Flo XP2 Pump: 06115517-2040, 1.5HP, 240 Volt, 2 Speed

New Version Replaced Obsolete Gecko Aqua-Flo XP2 Pump 1.5HP, 240 Volt, 2 Speed, 3" OD Fittings$596.00

06130395-2040HZN, Aqua-Flo FMXP2 Pump, 3HP, 240 Volt, 2 Speed, 48 Frame Pump. 2 inch Intake and Discharge

New Version Replaced Obsolete Gecko Aqua-Flo FM XP2 Pump, 3HP, 240 Volt, 2 Speed, 3" OD Fittings$597.00

Reviews 0

No reviews have been added for this product.

Reviews

Aqua-Flo Wet End, 2.5Hp. Aqua-Flo Wet End, 2.5Hp, 2"MBT Side Discharge, 48 Frame. 3 5/8 Inch Bolt Pattern

The original is discontinued, replaced by this item: 91041825-000. Replacement for: 91041611

Pump to Motor Foot Types	9
Motor Frame	48 Frame Thru-Bolt
Drain Plug Location	4,6,9 o`clock
Suction Auxillary Port	None
Suction Style	Center
Suction Connection (Physical Dimension)	3-1/16" od
Suction Connection Type	Male Buttress Thread (mbt)
Suction Pipe Size	2"
Discharge Auxilary Port	None
Discharge Style	Side
Discharge Connection (Physical Dimension)	3-1/16" od
Discharge Connection Type	Male Buttress Thread (mbt)
Discharge Pipe Size	2"
Horsepower	2.5hp
Manufacturer	AquaFlo/Gecko
Pump Model	Flo-Master XP2e
Manufacturer Impeller Number	91694251
Volute Fastening Type	8 Screws
Volute/Sealplate Number	92770705

Measurement between thru bolts on this wet end: 3 5/8 inches ( please see: Determining whether your motor is a 48 or 56 Frame Motor.)
Frame Size: Motors are made in 2 Frame Sizes on Thru Bolt Motors. Thru Bolt spacing on a 48 Frame motor will be less than 4 inches. A 56 Frame Motor bolt's will be spaced more than 4 inches. Sundance Exception: On some Sundance Spas, they used some Emerson Motors that was a 56 Frame but had a thru bolt spacing of 4 inches if that is the case you would need the 56 Frame 6.1 inch diameter(used between 1997-1998 on their Theramax II Pump see note below*).

Determining whether your motor is a 48 or 56 Frame Motor.

The spa and pool industry use various "Frame" sizes to mount their "wet end" or pump to. A bracket mount motor has a welded base for mounting. These motors can be a 48 or 56 Frame.

Other types of motors such as the "C" Frame or Round Face and the Square Flange are all 56 Frame.

There are several ways to figure out the Frame size. One is to look at the spec sheet where it says Frame (FR) it might have some letters with it but will have 48 or 56 as the frame size.

The other way to determine is to measure the thru bolts (the 4 bolts that run thru the length of the motor and screw onto the wet end or volute of the pump). Measure the distance between the thru bolts,
DO NOT measure diagonally but from one bolt to the next bolt.

48 FRAME distance between the 2 bolts is 3 5/8 inch (Less than 4 inches)

56 FRAME distance between the 2 bolts is 4 1/8 inch*(Over 4 inches)
So if your bolt pattern is under 4 inches you have a 48 Frame and if your bolt pattern is over 4 inches you have a 56 Frame.

Because all manufactures do not call all things the same this is the best way to tell the Frame size.

But see the Exception below to the above measurements:

*PLEASE NOTE: AQUA-FLO FMXP FRAME Wet ends, have two different sizes on their 56 Frame Motors. They used 2 different motor manufactures, Emerson and Magnetek which can be different sizes.
Sundance Exception: On some Sundance Spas, they used some Emerson Motors that was a 56 Frame but had a thru bolt spacing of 4 inches (used between 1997-1998 on their Theramax II Pump). These pumps are the 6.1 diameter 56 Frame Wet Ends that we reference.
You must measure the distance between the thru bolts to determine the correct pump wet end for your spa.

How to Determine Spa Plumbing Size

Pump plumbing sizes are nominal, and not actual outside diameter (OD) of the threaded intake and/or discharge. Use a tape measure and check your old pump thread size against the sizing table

Plumbing Size Pump Thread OD (approx.)
1 1/2 Inch                 2 3/8 Inch
2 Inch                      3 Inch
2 1/2 Inch                 3 5/8 Inch
