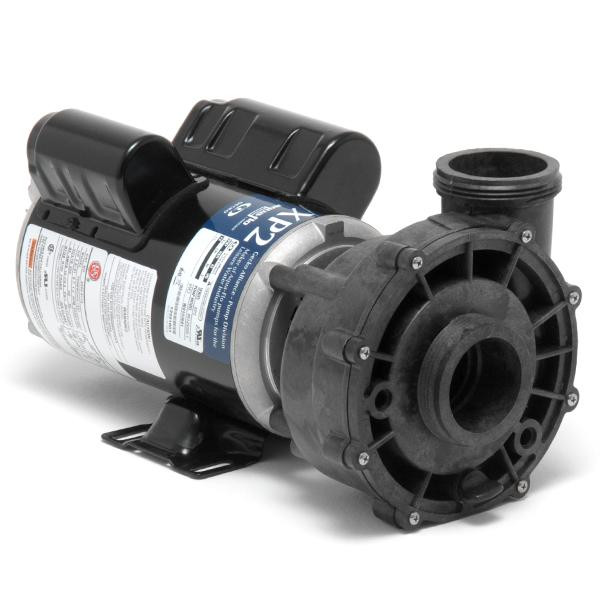

Aqua-Flo by Gecko's Flo-Master® XP2e pump is the energy conscious offering within its high performance spa pump line. It's designed for today's large, heavily jetted spas requiring increased flow. The XP2e pump fits within the same envelope as the original XP2 pump, yet provides greater flow while improving the overall energy efficiency of the spa.

Spa Pump Features:

• Fine tuned impeller that moves water through the system with maximum performance

• 2" intake and discharge

• Versitle 48 frame wet end can be rotated for easy installation

• Thermally protected to extend life expectancy of motor

• Continuous duty horsepower of 3.0hp, dual speed

• California Title 20 Compliant




  What does the frame size on a spa pump mean?

  The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor's ID plate, usually marked with an F for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart, and the 56 frame motor has bolts with spacing more than 4 inches apart.

  How do I measure and know what size are the fittings on my pump?

  Most spas use a 2 inch Union on the Suction and Return of the Pump. This size usually refers to the size of PVC that is used on the Union of the Pump, there are some, specifically Waterway that also uses a 2.5 inch Suction Fitting with a 2 inch Return fitting, so when you measure, these are the measurements that you will help determine the size of the Suction and Return Fittings: 2 inch threads measure 3 1/16 inch OD and 2 1/2 inch threads measure 3 5/8 inch OD.
