Sundance Spas
No reviews have been added for this product.
(Use with 6540-228 Oring (sold separately, see below in related products.)

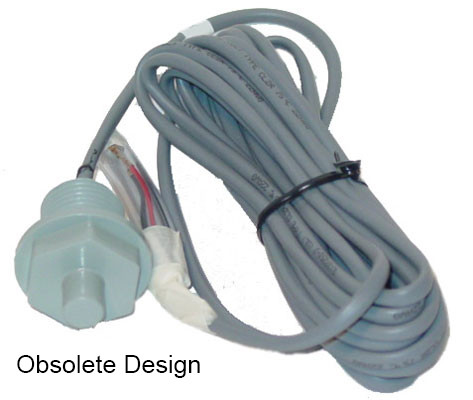

Temperature Sensor fits these Sundance® Spas Models:
Replaces 6600-070, 6600-071 6600-104.
Used on All: Austin, Aspen®, Bali, Bahia, Burlington, Caprio, Cayman, Camden, Certa, Chelsee®, Cheyenne, Denali®, Dover, Hamilton, Hartford, Hawthorne, Lagunas, Madison, Metro, Palermo, Solo, Tacoma®, Vail
Used on these Circuit Boards: 6600-720, 6600-726, 6600-722, 6600-724, 6600-286, 6600-287, 6600-288, 6600-289, 6600-082, 6600-084, 6600-086, 6600-087, 6600-088, 6600-089
Temperature Sensor fits these Jacuzzi® Spas Models:
The Temp Sensors are located in the filter compartment on the side. They are unscrewed from the inside of the tub and the wire is fed through the tub into the equipment compartment. Follow the wire to the PC Board. To feed the new sensor, we usually drain the tub below the hole and pull the old sensor out a couple of feet into the tub, cutting the old sensor head off, we tie on the new sensor (connector end) to the old wire and pull the wire through into the equipment compartment.

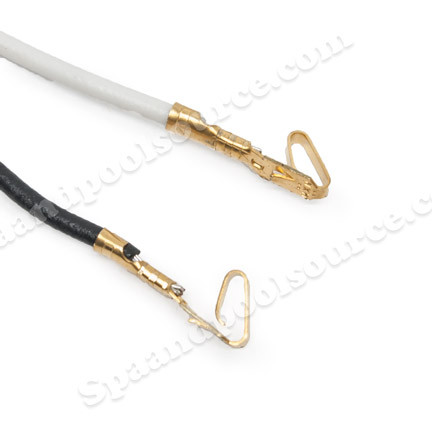

The connectors on the Temp Sensor are attached to a pc board connector that is located on the PC Board (usually at the top). There are other wires connected to this plug: Jumper interlock wire,Flow Switch, High Limit and Temp sensor. Remove the pin connector from the board .
Please note: The color code on the wires have no significance, you can hook the wires up either way.
