Spa Pump for 2002+ J-300 and J-200 series Premium Spas

6500-307 Replaces 6500-707, 6500-349

Specifications:

• 1 Speed
• 2.5 HP / 4.2 Brake HP
• 230 Volt
• 12.0 Amps (measured at 6 MBHP with Aquaflo/Gecko wet end) 10.0 Amps (measured at 4.2/2.5 HP with Sundance/Jacuzzi wet end)
• 48 Frame
• SPH30FL2S

New Motor with Sundance/Jacuzzi Piranha Wet End

Comes Complete with the motor and wet end/pump housing. Does not come with the power cord or Hose Barb 6540-171*

• The Pump is complete with a US Motor and the Sundance/Jacuzzi wet end. The difference between the Factory OEM Pump, available from us, is that ours comes with the original welded bracket on the motor instead of the bracket mount currently used by Sundance. Our pump replaces the original found in your spa that had the mounting bracket welded to it.

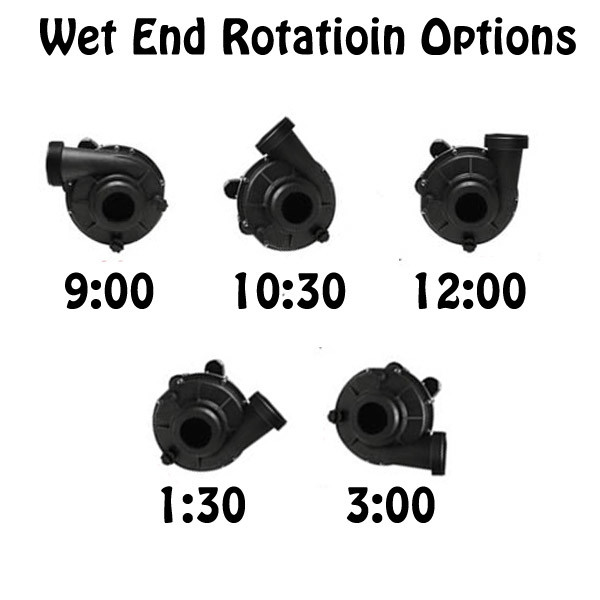

• This can be used for other pumps by Sundance by simply adjusting the position of the wet end by loosening the 4 bolts (this is a thru bolt motor) and turning the wet end to the position of the original pump and then retightening the 4 bolts. We send the pump in the 6500-307 position which is in the 12:00 position.

Notes:

• Has the welded foot pedestal on the motor itself.
• We use only a Viton Seal on our Wet ends for long life. The viton seal is designed for harsh chemical environments such as salt, ozone and chemically treated water. These seals are more costly than a standard seal used by most of our competitors.

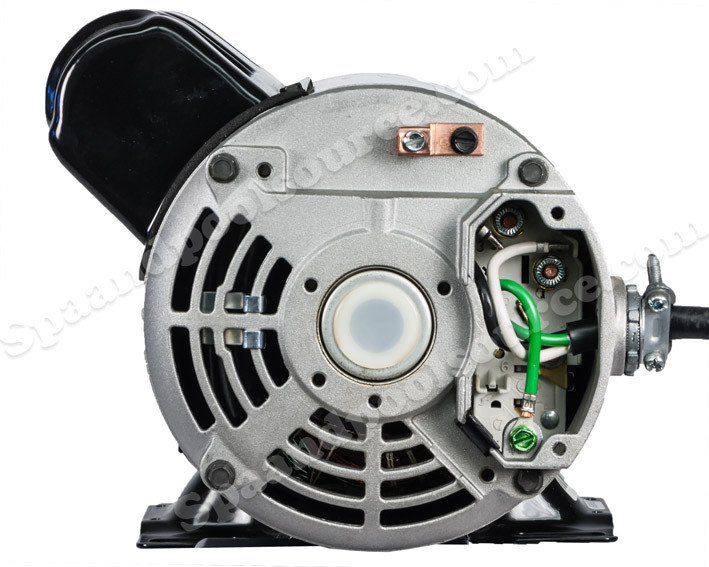

• Wiring diagram comes on the side of the motor
• Note: the wiring diagram of the new motor may not be the same as the original motor.

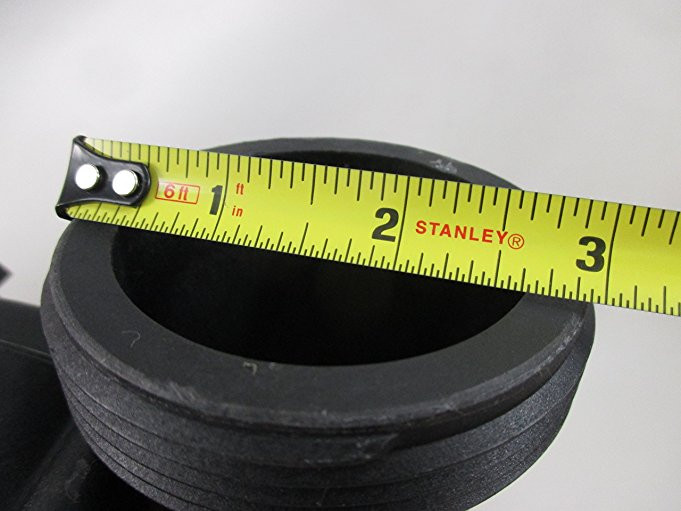

• * The 6540-171 Hose Barb is used on many of the Sundance/Jacuzzi Pumps (you would need to verify) and was originally made of plastic which eventually fails. Please note that the threads are NOT standard MPT threads and you cannot use an over the counter hose barb (from a Hardware Store). If you do it will strip the threads and cause leakage and ruin the Pump Housing (not covered under warranty). See the Related Products below to purchase this item.

Used On the Following Jacuzzi Spa Models:

• 2002-2003 (Pump #2): J-360, J-370, J-380
• 2004 (Pump #2): J-345, J-355, 375, J-385
• 2004-2006 (Pump #2): J-345, J-355, J-375, J-385
• 2005-2006 (Pump #2): J-230, J-355, J-375, J-385
• 2007 (Pump #2): J-230

This pump can be used for the following pump numbers by rotating the wet end to match the position of the original pump.

• 6500-263
• 6500-307
• 6500-341
• 6500-763
