Sundance Spas 6500-260, 6500-760 Spa Pump - 2 Speed 2.5 HP, 4.2 Brake HPSundance Spas$597.00
Loading...
Loading...
Loading...
Loading...
Sundance Spas
No reviews have been added for this product.
*Also called Jacuzzi Piranha Pump

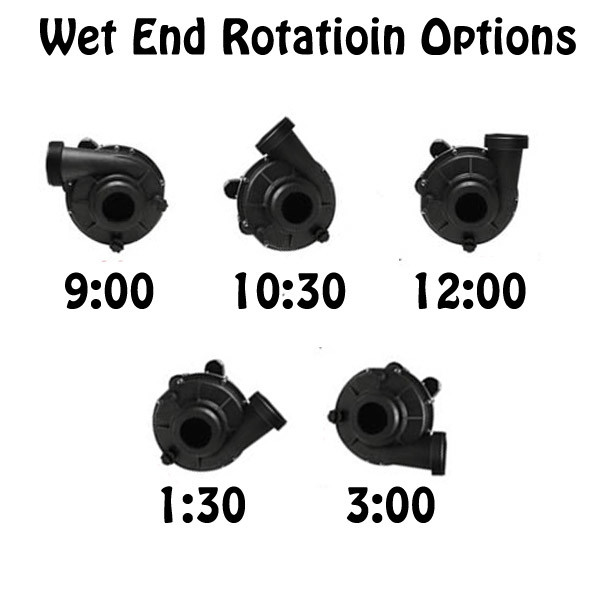

This pump can be used for the following pump numbers by rotating the wet end to match the position of the original pump.
Wiring PDF Download

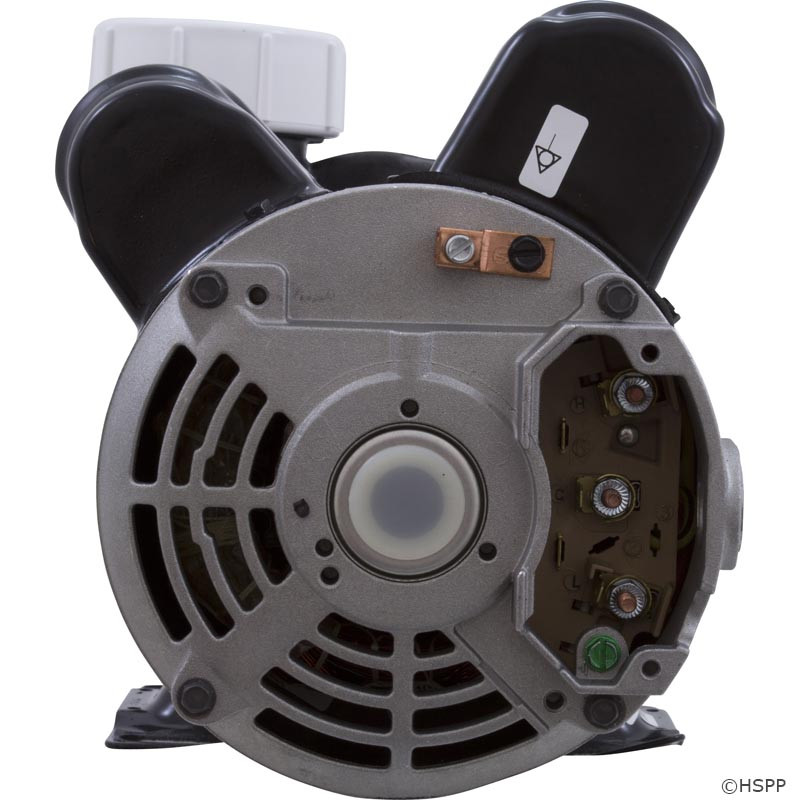

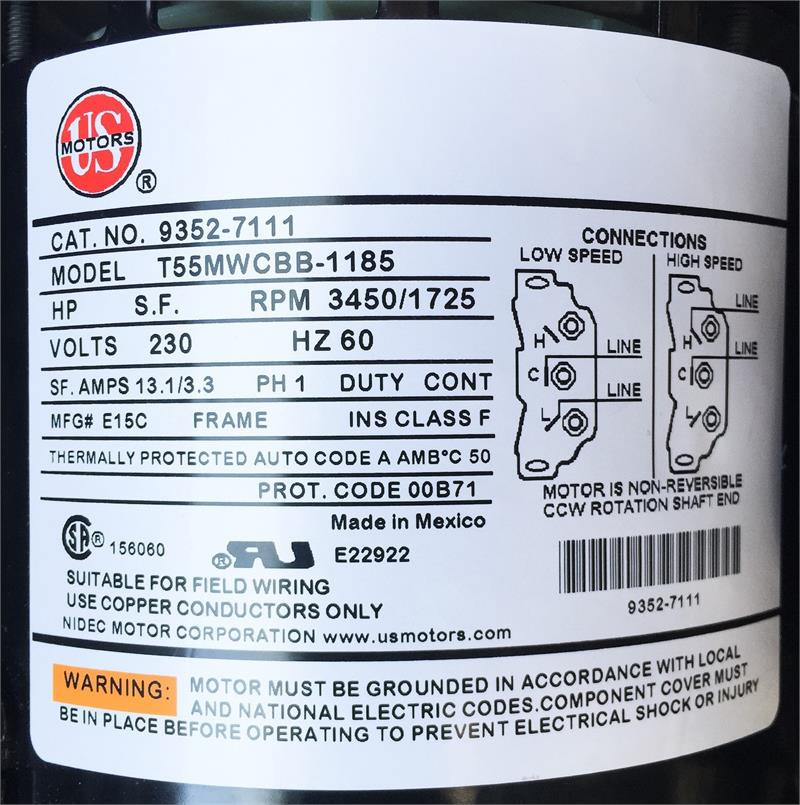

Please Note We include the wiring diagram for your motor which is also on the ID plate of the Motor. The Motors are 240 Volts with 4 wires: Red (High Speed), Black (Low Speed), White (240Volt Common) and Green (Ground). Please note the manufacture of your motor and select the correct wiring diagram. It may vary from your original wiring on your original spa motor.
Single Speed Use: This 2 speed pump is used as the primary pump but can be used as a single speed. If you need it to run as a single speed, then you would would not hook up the low speed wires. Hook up the Black (High Speed) and the White (240Volt Common).
Important: The parts from this pump are not compatable to the Theramax/Theraflo/Aquaflo Pump used in 1997-1998. If yours was the Aquaflo pump used in this time period and you are wanting parts for replacement, you must use the parts listed here.
