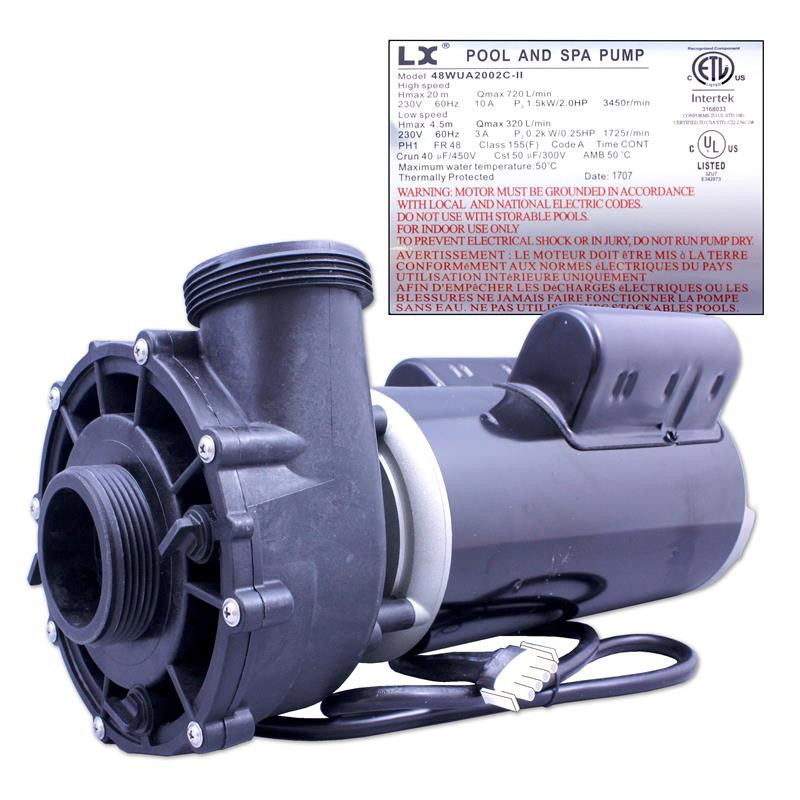

Spa Pump, LX, Sundance® Spas, Jacuzzi® Spas. 48YFrame, SD, 2.0HP, 2 Speed, 230 Volt, 10.0/3.0Amps. (Without Foot Bracket- Part Number 6000-532, sold separately)

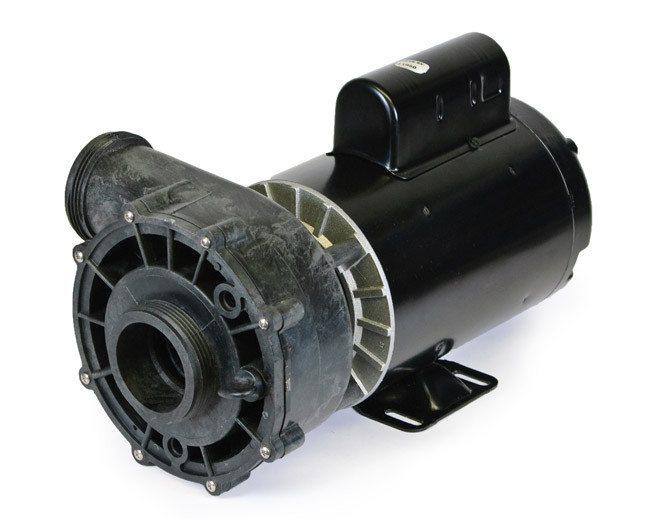

Same as 6500-092 Sundance/Jacuzzi Spas.

Sundance®Spas and Jacuzzi® Spas replaced their original pumps with the LX Pump (around 2007 on some models). The LX Pump (Chinese manufacture) is a bracketless pump that requires the 6000-532 bracket. It allows the pump to be turned to the configuration you need for the outlet (discharge) of the  pump. You would need to check if your previous pump had the removable bracket or not. See below in Related Products. Please note (on the ID tag of the motor) that this is a 48 Frame pump, if yours is a 56 Frame this is not the correct pump.

Specifications:

• LX Pump

• 2.0 HP

• 48WUA Model

• Amps: 10.0/3.0 2 Speed, 230 Volts

• Frame: 48Y

• Plumbing Union Size: 2 Inch

Pump Manufacturers reserve the right to change motors on pumps without notice. Motors shown may differ from current stocked prodcuts. Form and functionality remain the same.

Visit our Facebook page for a how-to video on replacing the Jet Pump in your Sundance Spa
