Sundance Spas
1995, 1&2 pump systems without PermaClear (Eprom Rev. 1.27C)
Replaces 6600-030 board for 1993 800
This board was used on the following models and years: (please verify that your spa has this board)

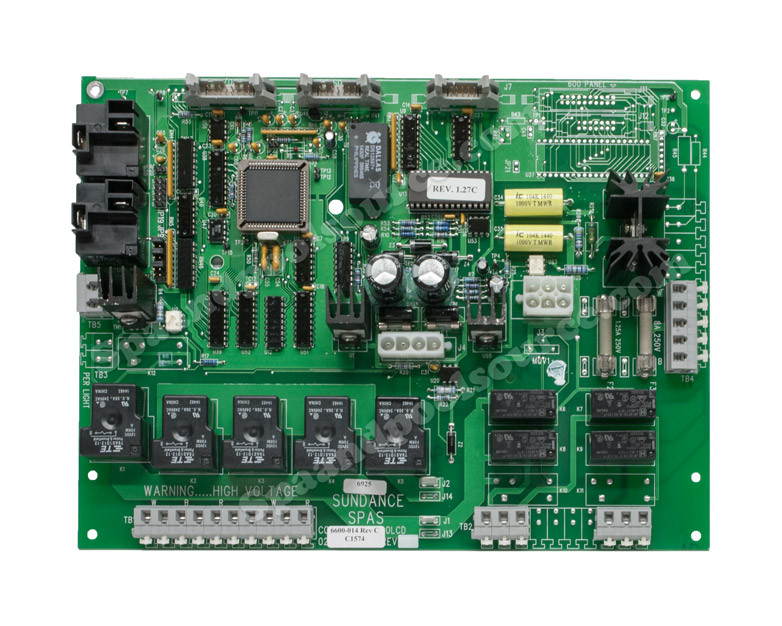

Sundance® Spas would use the 6600-013, 6600-014 and the 6600-040 boards interchangeably. The only difference is the Eprom (memory chip)found on the board with a REV followed by numbers. This will identify the correct board. The 6600-013 used a REV. 1.25C Eprom, the 6600-014 used a REV.1.27C Eprom and the 6600-040 used a REV. 1.24C Eprom
If you do not have a Circulation Pump, then you have a NonPermaclear System and this is the board you need. Circulation Pump is found on the heater inlet side, small pump in Gray, Red or Black usually located behing the Right Side Pump with flex or vinyl hose attached to it. (If your system has one of these you need the 6600-013 (obsolete). You would have to use the 6600-014 with your old eprom, however your eprom off of your original board may be defective. Sundance® Spas no longer carries the 1.25C eprom.
No reviews have been added for this product.
