Sundance Spas

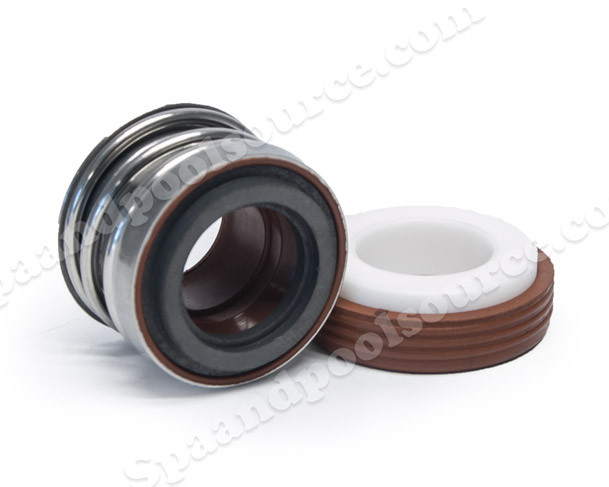

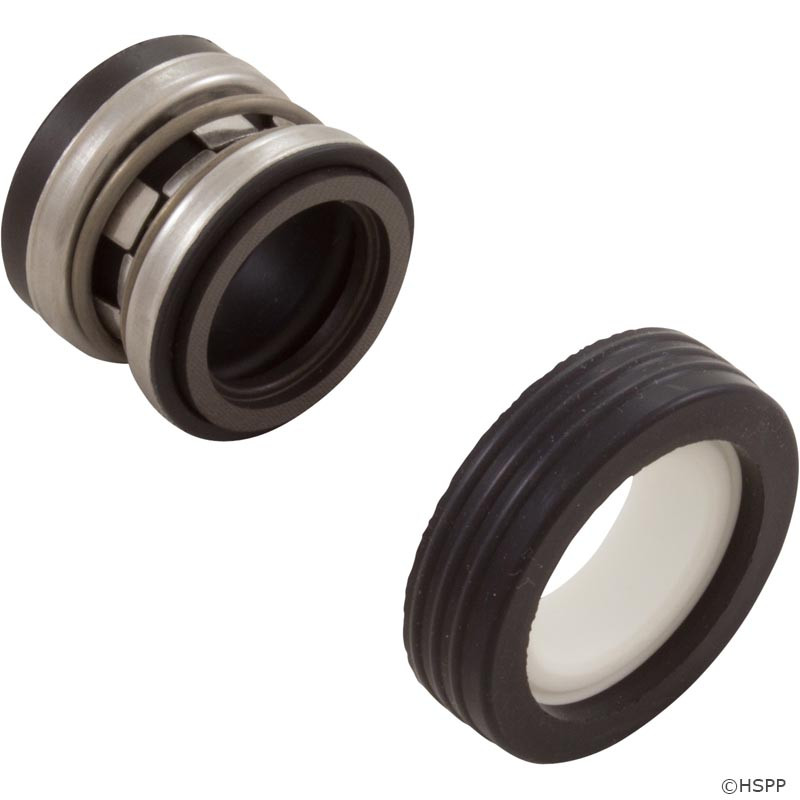

6500-447 Pump Seal used on many Spa and Pool Pumps. This is a Viton Seal. It is designed to be more impervious to water chemistry and chemicals along with salt and ozone systems. They are a longer lasting seal and recommended by Sundance/Jacuzzi and other manufactures. For the standard seal replacment see PS-200.
See Applications below:
This seal was used on 1997-1999 Aqua-Flo "XP" Series Pump with the part numbers: 6500-122, 6500-124, 6500-126, 6500-128, 6500-131, 6500-134, 6500-135, 6500-137, 6500-138
Also used on the 6500-901, 6500-902 and 6500-903 Pump used from 2005-2009
| Shaft Seal Head Type | A |
| Model | PS-200/PS-3867 |
| Quality/Material | Better - Viton Carbon Graphite |
| Shaft Size | 5/8" |
| Seal Outside Diameter | 1-7/32"dia |
| Seal Height | 13/16" |
| Mating Ring Diameter | 1-1/4"dia |
| Mating Ring Thickness | 13/32" |
Used with these Sundance and Jacuzzi Impellers: 6000-036, 6000-048, 6000-220, 6000-049, 6500-823
Also Replaces the Pump Seal in the following Pumps:
Cross Reference:
Sundance Spas
6500-447 Pump Seal used on many Spa and Pool Pumps. This is a Viton Seal. It is designed to be more impervious to water chemistry and chemicals along with salt and ozone systems. They are a longer lasting seal and recommended by Sundance/Jacuzzi and other manufactures. For the standard seal replacment see PS-200.
See Applications below:
This seal was used on 1997-1999 Aqua-Flo "XP" Series Pump with the part numbers: 6500-122, 6500-124, 6500-126, 6500-128, 6500-131, 6500-134, 6500-135, 6500-137, 6500-138
Also used on the 6500-901, 6500-902 and 6500-903 Pump used from 2005-2009
| Shaft Seal Head Type | A |
| Model | PS-200/PS-3867 |
| Quality/Material | Better - Viton Carbon Graphite |
| Shaft Size | 5/8" |
| Seal Outside Diameter | 1-7/32"dia |
| Seal Height | 13/16" |
| Mating Ring Diameter | 1-1/4"dia |
| Mating Ring Thickness | 13/32" |
Used with these Sundance and Jacuzzi Impellers: 6000-036, 6000-048, 6000-220, 6000-049, 6500-823
Also Replaces the Pump Seal in the following Pumps:
Cross Reference:
