Spa Pump for Sundance Spas and Jacuzzi

Specifications:

• 13.6/3.6 Amp
• 2 Speed
• 1.5 HP
• 115 Volt
• 48 Frame
• Does NOT come with 6000-532 bracket as shown,must purchase separate.

Special Buy! See the pumps below in the Related Products section for an even better price! We have used the original style motor (with the welded foot) with the Jacuzzi/Sundance Wet end to give you even more savings! These are direct replacement pumps.

Information

Warning: Do not install any 1.5 Hp Pump that has a higher Amp Draw (such as the Waterway 3420610-10). This could damage the Circuit Board and trip the GFI from 2 high of current load.

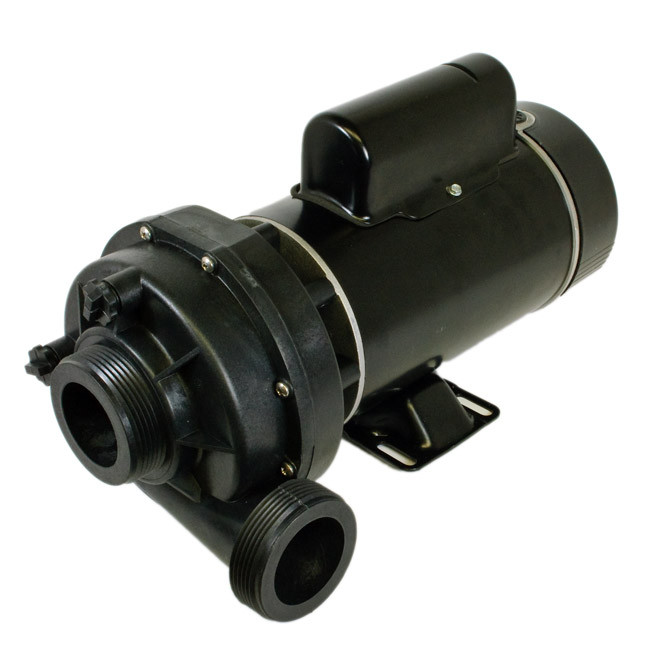

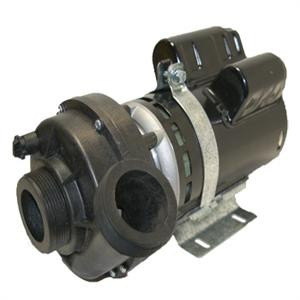

For Sundance Spas Theramax, Theraflo, Aquaflo Pumps: Since 1997 Sundance Spas has made various pump changes. The most important change on the new pump is the transition to a bracket assembly (Part Number 6000-532, sold separetly) for mounting the pump/motor. The old style pump/motor had a fixed mounting foot for a specific pump rotation. With the new bracket mount the entire pump can be rotated to the required orientation.

Notes:

• Pump does not come with an electrical cord.
• You can reuse the electrical cord from the pump being replaced
• .Does NOT come with 6000-532 bracket, sold separtely

Current Replacement for the Following Sundance Spa Models:

• Aspen
• Bali
• Cheyenne
• Caprio (2000-2006 model)
• Denali
• Dover
• Metro
• Solo
• Suntub
• Tango
• Tacoma
• Vail

Current Replacement for the Following Jacuzzi Spa Models:

• J-210
• J-220
• J-310
• J-315
• J-320, J-325 (EXCEPT those produced from 2005-2006)
• Hermosa
• Redondo

Replaces the Following Pump Numbers

• 6500-122
• 6500-135
• 6500-258
• 6500-259
• 6500-293
• 6500-758
• 6500-759
• 6500-793
